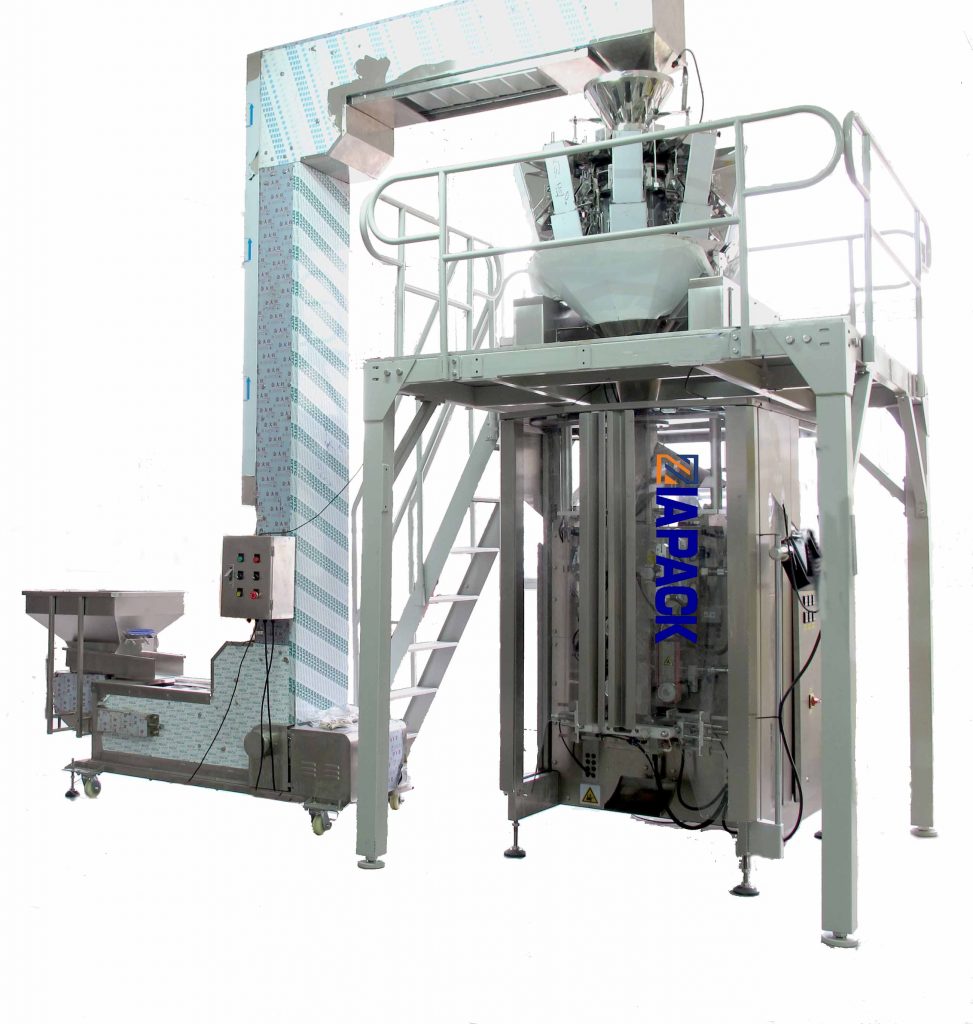

This machine can automatic realize functions of bag- making, filling, sealing, printing, cutting, etc. The finished bag with square bottom and vertical side .Can be stand on the table with pretty shape .This packaging machine adopts import servo motor for film feed and the man-machine interface uses advanced touch screen. Operation simpler and more convenient .All of the components adopts international famous brand, PLC is SIEMENS, servo motor is PANASONIC, touch screen is SIEMENS, cylinder and air valve is SMC. parts which contact with material 、control cabinet 、main frame are made of stain less steel304
Tehnilised parameetrid:
Packing speed(MAX): 20-30 bags/min(depend on the weight from 250 gram-1000 gram)

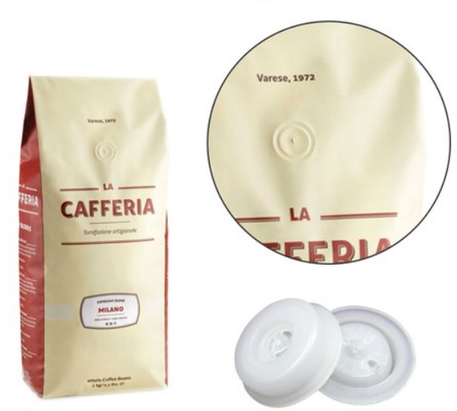

Bag type: Square bottom bag (gusseted bag with square bottom )
Bag size: Front width: 80～190 mm; Side width: 25～60 mm Length: 100～380 mm
Suruõhukulu: 0,6 MPa 350 L/min
Electric requirement: 380V/5.5 kW 50 Hz
Funktsioonid :
Film transport system and horizontal Jaw motion both drive by Panasonic motor
Toru ja krae ohutu kiire vahetamine, tõmmates lihtsalt klambri välja
Optoelektroonika tuvastab filmipositsiooni kaelarihmaga, et parandada filmiekskursiooni
Elektriline fotoandur, mis sisestab koti pikkuse reguleerimiseks värvikoodi
Unikaalne pneumaatiline film-reel lukustussüsteem, et vältida filmi joonistamist
Sõltumatu temperatuuri reguleerimine
Erinevat tüüpi kuumutatavad suletavad lamineeritud kiled, nimelt PE/BOPP, CPP/BOPP, CPP/PE PE/NYLON,
Alumiiniumfooliumi baasil saab masinal töötada.
Pakendamismasinat saab kasutada ka polüetüleenkile tihendamiseks, vahetades vastavaid seadmeid
