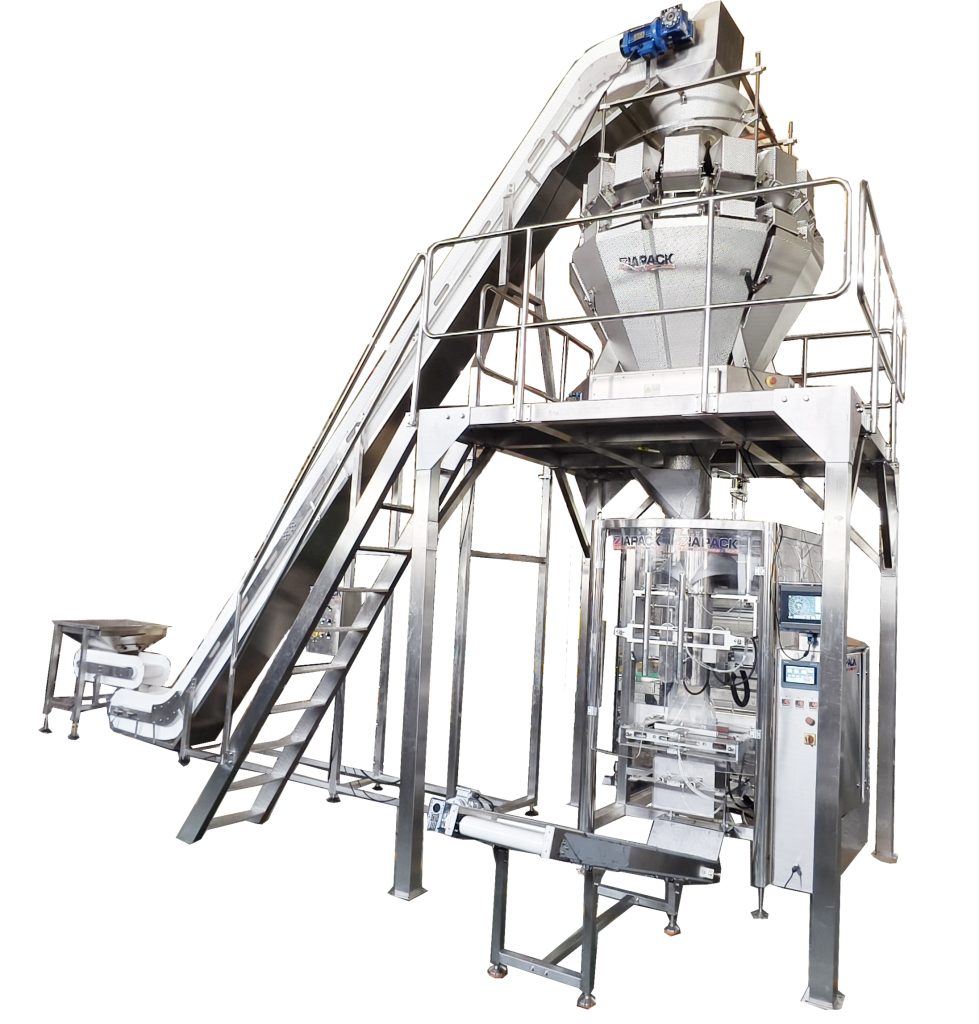

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Rakendus:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Omadused:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Sissejuhatus:
See masin suudab automaatselt teostada kottide valmistamise, täitmise, sulgemise, trükkimise, lõikamise jne funktsioone. See masin jõuab automaatselt koti moodustava täitmise ja sulgemiseni.
See pakkimismasin kasutab kile etteandeks imporditavat servomootorit ja inimese ja masina liides kasutab täiustatud puuteekraani. Kasutamine on lihtsam ja mugavam. Kõik komponendid kasutavad rahvusvahelist kuulsat kaubamärki, PLC on SIEMENS, servomootor on PANASONIC, puuteekraan on SIEMENS, silinder ja õhuklapp on SMC. materjaliga kokkupuutuvad osad 、 juhtkapp 、 põhiraam on valmistatud roostevabast terasest304
Tehnilised parameetrid:
| Mudel | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Koti pikkus | 150-480mm by secondary film pulling the bag length can be longer |
| Koti laius | 120-375mm(Side width +front width ) |
| Kile laius | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Võimsus | 6KW 380V±10% 50Hz |
| Masina suurus | 1650*1500*1750mm |
| Masina kaal | 650 kg |
